Double and Single Deflection

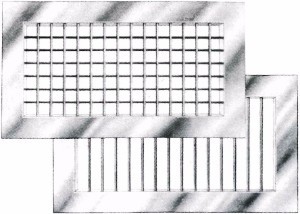

Model SG registers and grilles are designed for installation in sidewall or sill and can be used for supply or return air in heating, cooling or ventilating applications. The adjustable blades can be set individually at any position to provide maximum air pattern flexibility

Features

· Choice of extruded aluminium or sheet steel construction.

· Blades with aerofoil cross section for minimum turbulence and low noise level.

· Blades set on 19mm spacing as standard, 16mm or 13mm spacing are also available.

Finish

· Steel construction: Standard finish is white baked enamel. Special colour finishes are available to match architectural requirements.

· Extruded aluminium construction Baked enamel or special anodize finishes are available.

Accessories

· Opposite blade damper (OBD) Damper blades move simultaneously in opposite direction. Allow for smooth volume control from fully open to fully close. Smooth operation by turning a single adjustment screw. Dampers manufactured from sheet steel. Standard finish is black baked enamel.

Click HERE to download catalogue
