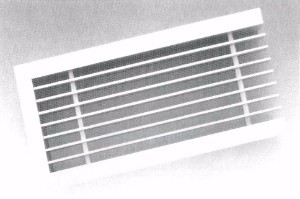

Linear Bar Grille

Model LBD/ LBD2 linear bar diffusers are specially designed to match with the modern interior design with outstanding performance. With fixed bars parallel to the long dimension, linear bar diffusers are a popular choice for continuous line use on a variety of application.

Linear bar diffusers are designed for installation in side wall, ceiling, sill or floor and can be used for supply or return air in heating, cooling or ventilation application. A variety of line styles and border widths are available to allow a selection to suit almost any application.

Features

· Extruded aluminium construction

· Maximum 3m length in one section

· Sections butt together to provide

architecturally clean lines

· Choice of 4 core styles (LBD): Bar Deflection: 0 ﾟ or 30 ﾟ, Bar spacing: 13mm or 10mm

· Choice of 3 border widths 13mm, 19mm or 32mm

· Hinged/ Removable cores are available as option

Finish

· Standard finish is natural anodize. Baked enamel, powder coating or special anodize finishes are available.

Accessories

· Opposite blade damper (OBD)

· Blade type damper (BTD)

· Blank-off strips

· Mitered corners

· Side wall, inside

· Side wall, outside

· Floor, ceiling or sill
