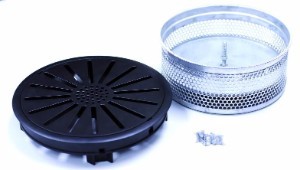

Circular Floor Diffuser

The Aerotech CFDA series floor diffuser offers Horizontal air patterns. The slots in the Horizontal displacement outlets are designed to give a swirl spread pattern with induction to achieve low air velocities and low temperature gradients in the occupied areas. This is suitable for both constant and variable flow.

Features

· Strong cast aluminium construction.

· Very high induction rate.

· Quite operation.

· Cleanable

· Distributor basket/dirt trap made of galvanized steel with and without throttle device.

· Easy for installation in conventional raised floor systems.

· Horizontal outlets suitable for displacement ventilation.

· Air velocity adjustable from less than 0.1m/s to 0.55m/s by turning air outlet elements.

· Can be walked over or driven over by a wheel chair.

Accessories

· Distribution baskets/dirt trap: Manufactured in galvanized perforated steel. With or without circular throttle device.

· Plenum box: Manufactured in galvanized sheet. Contain a commissioning damper. With or without acoustic insulation and reinforced surface layer.

Click HERE to download catalogue
